Coilovers use 46mm pistons and 53mm shock housings, the enlarged shock cartridges with specially designed pistons and rods provide a wide range of damping force. |
|
-
|
Valves are constructed of special spring steel, which outperforms stainless steels and produces longer valve life. Valve stacks use a patented deflective system to provide more precise control. |
|
-
|
Patented concave lower locking ring, to prevent unseating. |
|
-
|
Springs are made of SAE9254 high strength, durable steel. Compression tested at over 500,000 tires with less than 5% deformation. |
|
-
|
T6061 Aluminum utilized in spring locks and seats for high strength and lightweight. |
|
-
|
Iron lower brackets on MacPherson struts to ensure rigidity. |
|
-
|
Piston rods are constructed of highly polished steel to lengthen oil seal life and prevent leaking. |
|
-
|
High pressure inner rod guide seals ensure a perfect fit for consistent fade resistant damping and long shock life. |
|
-
|
2 step coating process utilizing nickel and chromium plating to prevent corrosion. |
|
-
|
Newly developed lubricant oil in shock cartridges minimizes aeration and cavitation. |
|
-
|

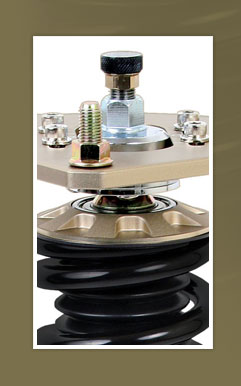

An additional bearing beneath each pillowball mount provides the smoothest action and prolongs the lifetime of the pillowball itself. |
